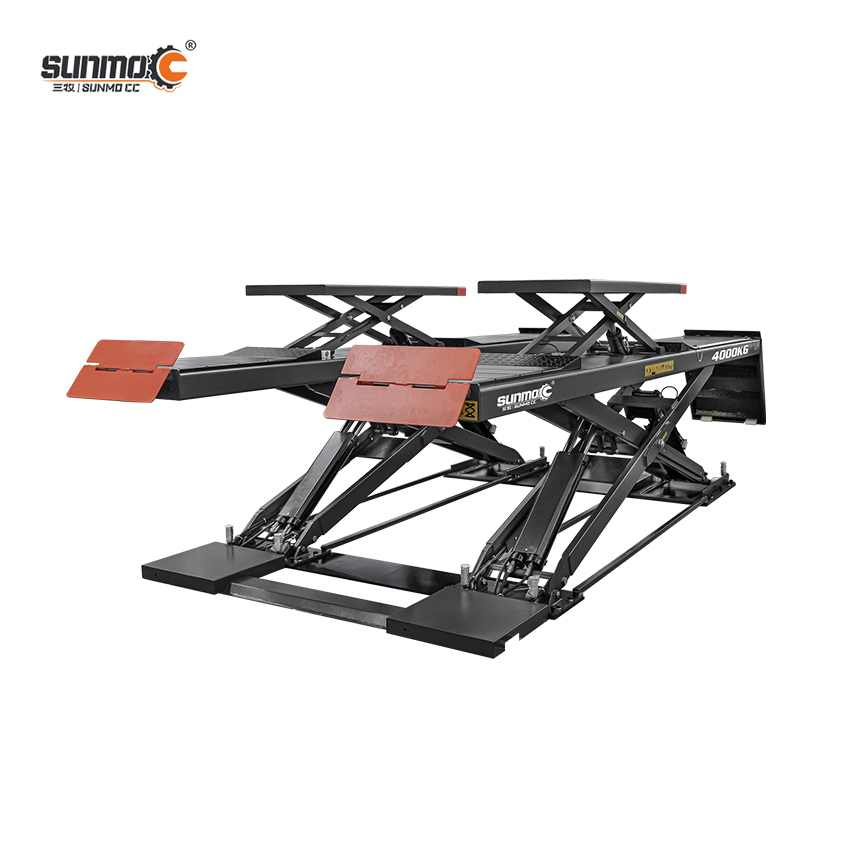

SUNMO-4.0MC 4Ton Super Thin Scissor Lift

描述

1. Lifting weight: 4000 kg;
2, lifting height: 1770mm; Shear lifting height: 420mm;
3, the minimum height: 210mm;
4, lifting time: 50s;
5, the whole length: 4500mm; Machine width: 2160mm;
6, the machine weight: 2000 kg;
7, motor power: 3 kw;
8, air source requirements: 6-8 bar;
9. Drive mode: electro-hydraulic

1, ultra-thin design, lifting weight 4000KG, minimum lifting height 210mm, very suitable for rapid detection and maintenance of vehicles, tire maintenance, etc., more simple, safe and efficient installation.
2, superimposed shear lifting platform, easy to repair tires, and the platform can be pulled for different wheelbase vehicle chassis.
3, the lifting machine control system is integrated on the circuit board of the electric control box, integrated electric control hydraulic drive, electric control panel installed emergency stop button, all keys let go and stop, easy and safe operation.
4, adjustable position of the corner disk groove and locking side slide, can meet the vehicle four-wheel positioning requirements (corner disk optional).
5, there is a tracking mechanical safety lock during the ascent process to ensure safe operation, and the pneumatic unlocking device reduces the noise of the machine.
6, 24V safe operating voltage, drop the whole alarm buzzer, limited prevention of accidental injury.
7, the standard hydraulic explosion-proof device to prevent the oil pipe burst caused by the instant fall.
8, choose aluminum shell motor, good heat dissipation performance.
9, surface treatment using electrostatic powder spraying process, paint adhesion is stronger.
10. Passed CCS type certification of China Classification Society.
