specification

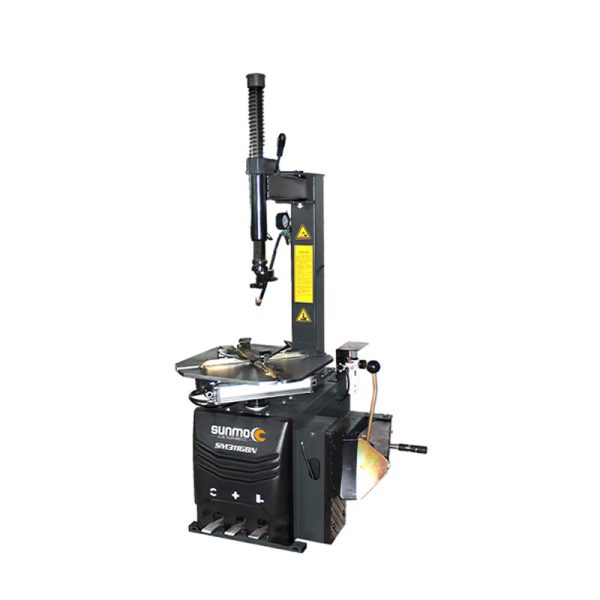

SM311GBN Premium Swing-Arm Tire Changer

  • Swing-Arm Design: Simple and reliable structure for easy operation.

  • Proprietary 58kg Dual-Structure Machine Base: Designed for enhanced stability and durability.

  • New Adjustable Hexagonal Bead Press Shaft Sleeve: Allows fine-tuning of alignment deviation.

  • Three-Position Adjustable Bead Breaker: Flexible pressure control for various tire types.

  • 2000kgf Aluminum Alloy Bead Breaker Cylinder: Delivers strong and stable bead separation force.

描述

  • Swing-Arm Design: Simple and reliable structure for easy operation.

  • Proprietary 58kg Dual-Structure Machine Base: Designed for enhanced stability and durability.

  • New Adjustable Hexagonal Bead Press Shaft Sleeve: Allows fine-tuning of alignment deviation.

  • Three-Position Adjustable Bead Breaker: Flexible pressure control for various tire types.

  • 2000kgf Aluminum Alloy Bead Breaker Cylinder: Delivers strong and stable bead separation force.

  • Rim Clamping Range (External): 11″–21″

  • Rim Clamping Range (Internal): 13″–24″

  • Maximum Rim Width: 315 mm

  • Maximum Tire Diameter: 960 mm

  • Working Air Pressure: 8–10 bar

  • Bead Breaker Force: 2000 kgf

  • Voltage / Motor Power:

    • 220V / 50Hz / 1PH / 1.1 kW

    • 380V / 50Hz / 3PH / 0.75 kW

  • Net Weight: 255 kg

  • Packing Dimensions: 100 cm × 80 cm × 100 cm
