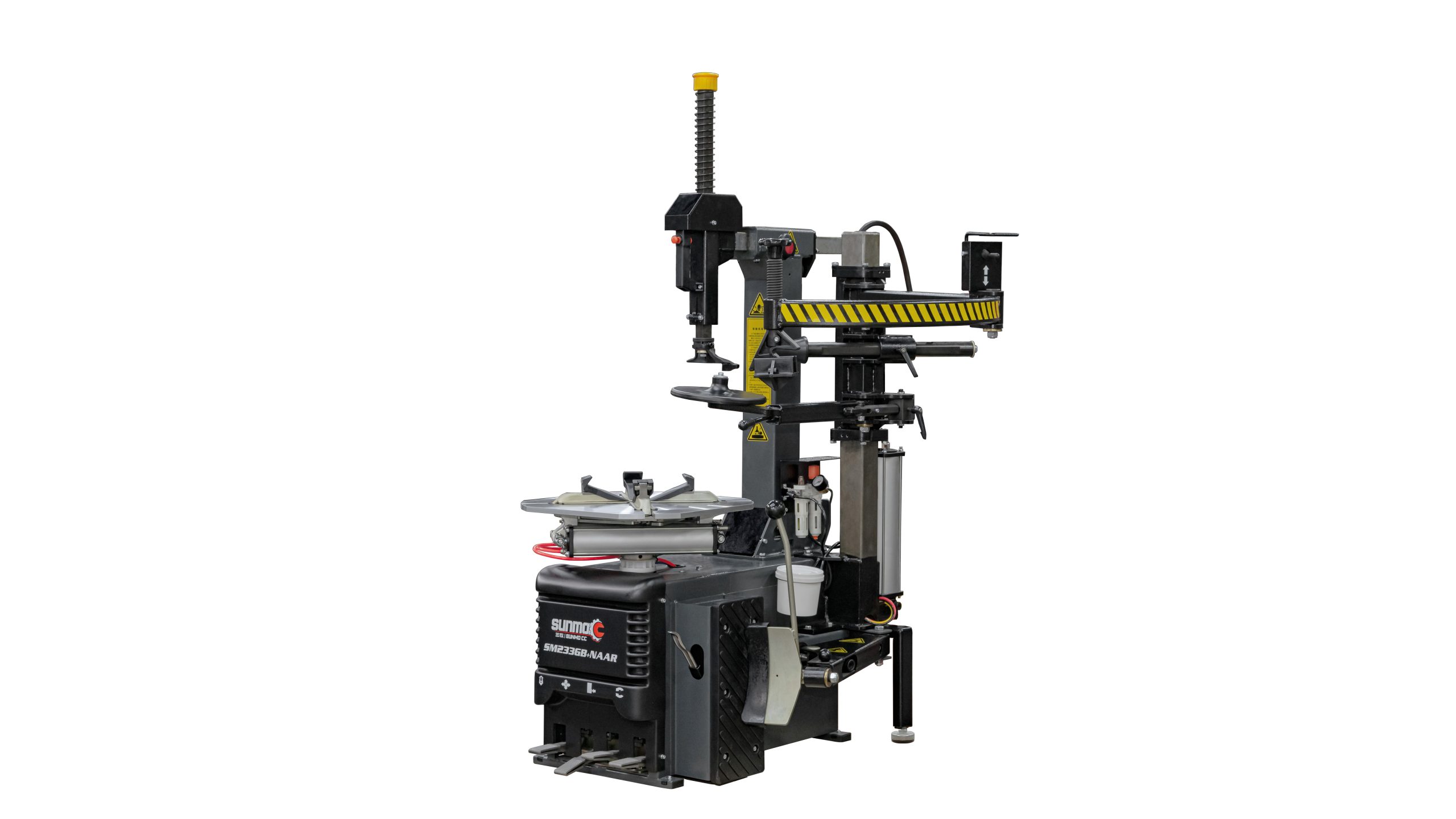

Product Features:
-
Backward-tilting arm design
-
Independently designed 58kg dual-structure machine body
-
Newly developed patented auxiliary arm with enhanced structural strength
-
Four-position adjustable bead breaker shovel
-
Bead pressing wheel operated by pneumatic up/down control
-
Sliding arm with front and rear bearing-guided movement; vertical and horizontal transmission uses bearings
-
External clamping range: 11″–21″
-
Internal clamping range: 13″–24″
-
Maximum rim width: 315mm
-
Maximum tire diameter: 960mm
-
Working air pressure: 8–10 bar
-
Bead breaker force: 2000 kgf
-
Voltage / Motor Power:
-
220V / 50Hz / 1PH / 1.1kW
-
380V / 50Hz / 3PH / 0.75kW
-
-
Machine weight: 385kg
-
Packing dimensions:
-
Main unit: 100cm × 80cm × 100cm
-
Auxiliary arm: 115cm × 32cm × 50cm
-
