specification

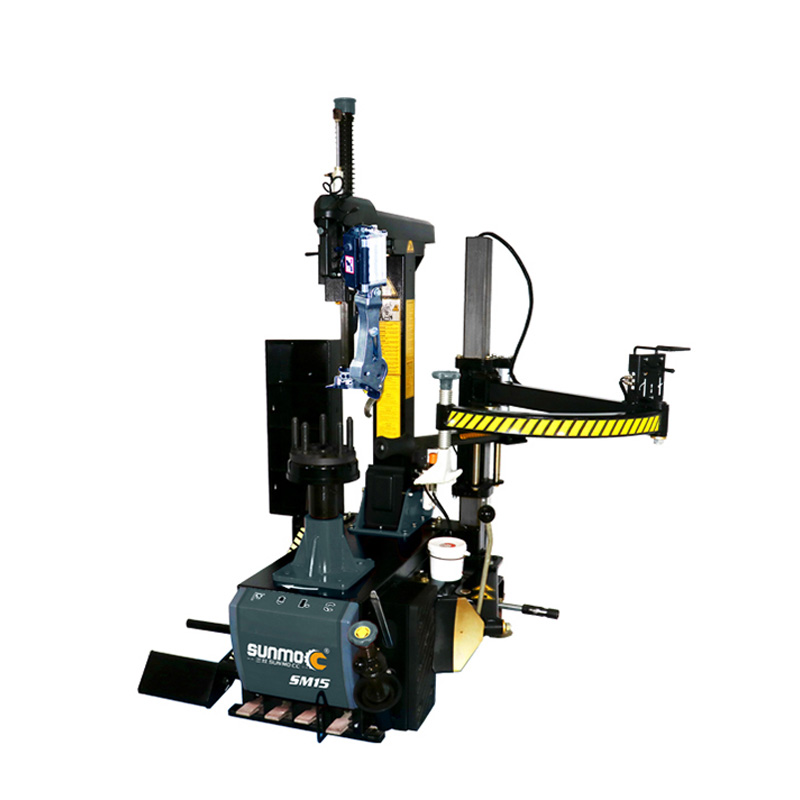

SM15 Turntable-Free Leverless Tire Changing Machine

  • Foot-Controlled Dual-Speed Turntable: 6 or 12 RPM, high/low speed options.

  • Custom Dual-Speed Forward/Reverse Switch: Durable and easy to use.

  • Patented Assist Arm: Stronger structure for tough jobs.

  • Dual-Speed Motor: Handles large, stiff, low-profile, and run-flat tires.

  • Leverless Tilt-Back Mount Head: Heat-treated, durable, precise angle.

  • Quick Central Locking System: 3-second lock, adjustable turntable height.

  • Tire Lift: Lifts tires up to 75 kg.

描述

  • Dual-speed Foot Pedal Control Turntable: Operates at 6 and 12 RPM, offering two selectable rotation speeds (low/high).

  • Newly Designed Dual-Speed Forward/Reverse Switch: Enhanced durability and operational convenience.

  • Newly Patented Assist Arm: Engineered for increased structural strength, ideal for high-torque applications.

  • Dual-Speed Motor: Optimized for mounting and demounting large, stiff, flat, and run-flat tires.

  • Leverless Automatic Tilt-Back Mount/Demount Head: Special heat-treated surface for exceptional durability and precision angle control.

  • Ultra-Fast Central Locking System: Innovative quick-lock design enables clamping within 3 seconds; height-adjustable center turntable for various wheel sizes.

  • Heavy-Duty Tire Lift: Capable of lifting tires weighing up to 75 kg, improving ergonomic efficiency.

  • Rim Diameter Compatibility: 13″ to 28″.

  • Maximum Rim Width: 420 mm.

  • Maximum Tire Diameter: 1180 mm.

  • Working Air Pressure: 8–10 bar.

  • Bead Breaker Force: 2500 kgf.

  • Turntable Rotation Speed: 6 and 12 RPM.

  • Tire Lift Capacity: 75 kg.

  • Voltage / Motor Power:

    • 220V / 50Hz / 1 Phase / 1.1 kW

    • 380V / 50Hz / 3 Phase / 0.75 kW

  • Net Weight: 385 kg.

  • Packing Dimensions: 138 cm × 113 cm × 184 cm.
