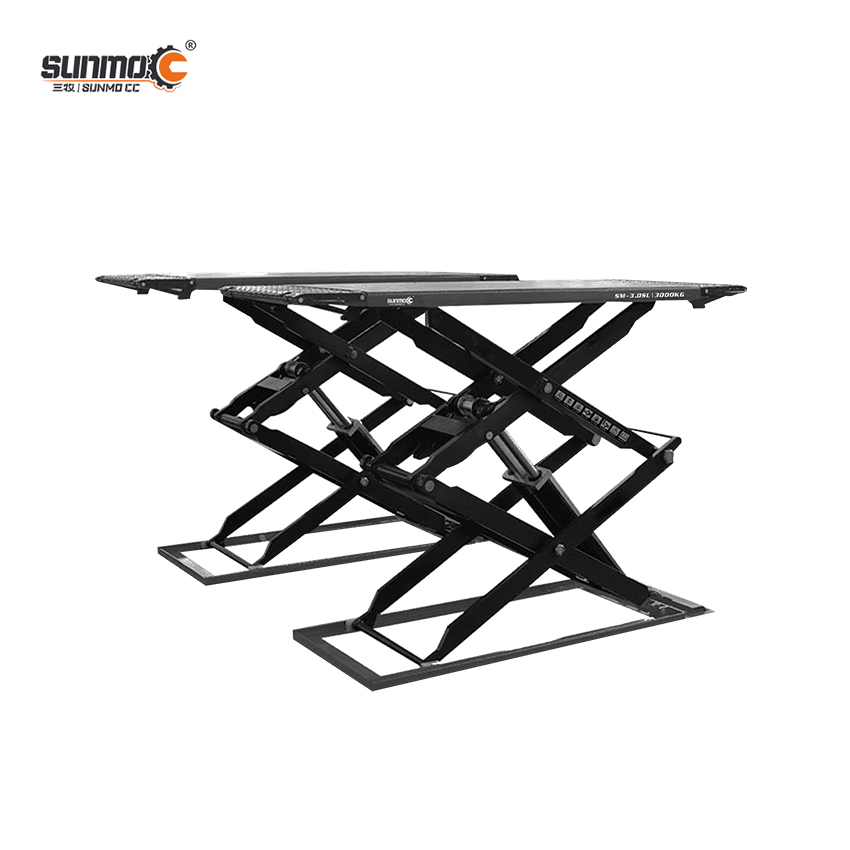

SM-3.5SL 3.5Ton Super Thin Scissor Lift

描述

1. Lifting weight: 3000kg;
2, lifting machine time: 50S;
3. Initial height: 110mm;
4, lifting height: 1850mm;
5, platform length: 1475-2000mm;
6, platform width: 650mm;
7, motor power: 2.2Kw;
8, equipment packaging size: 2070*680*235mm

1. The two groups of support mechanisms are respectively installed with two hydraulic cylinders, the main cylinder and the auxiliary cylinder, and the cross-sectional area of the main cylinder with a rod cavity is equal to that of the auxiliary cylinder without a rod cavity.
2. The rod chamber of the main oil cylinder in one set of support arms is connected with the rodless chamber of the auxiliary oil cylinder in another set of support arms. After the interior is filled with hydraulic oil, it is isolated from the oil tank through the ball valve.
3. When rising, the hydraulic oil discharged from the rod cavity of the main cylinder all enters the auxiliary cylinder of the other supporting mechanism. Because the cross-sectional area is equal, the height of the rise is also equal.
